Description
Features
Ducted or re-circulating installation
3 speeds
Aluminium grease filters
Twin fan motor

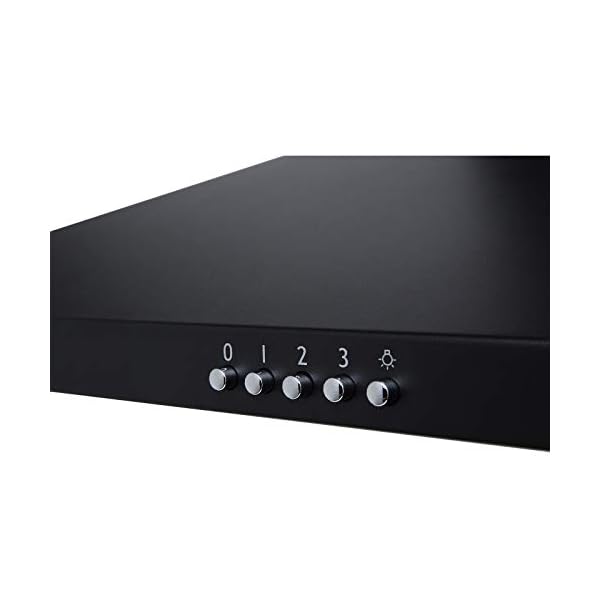

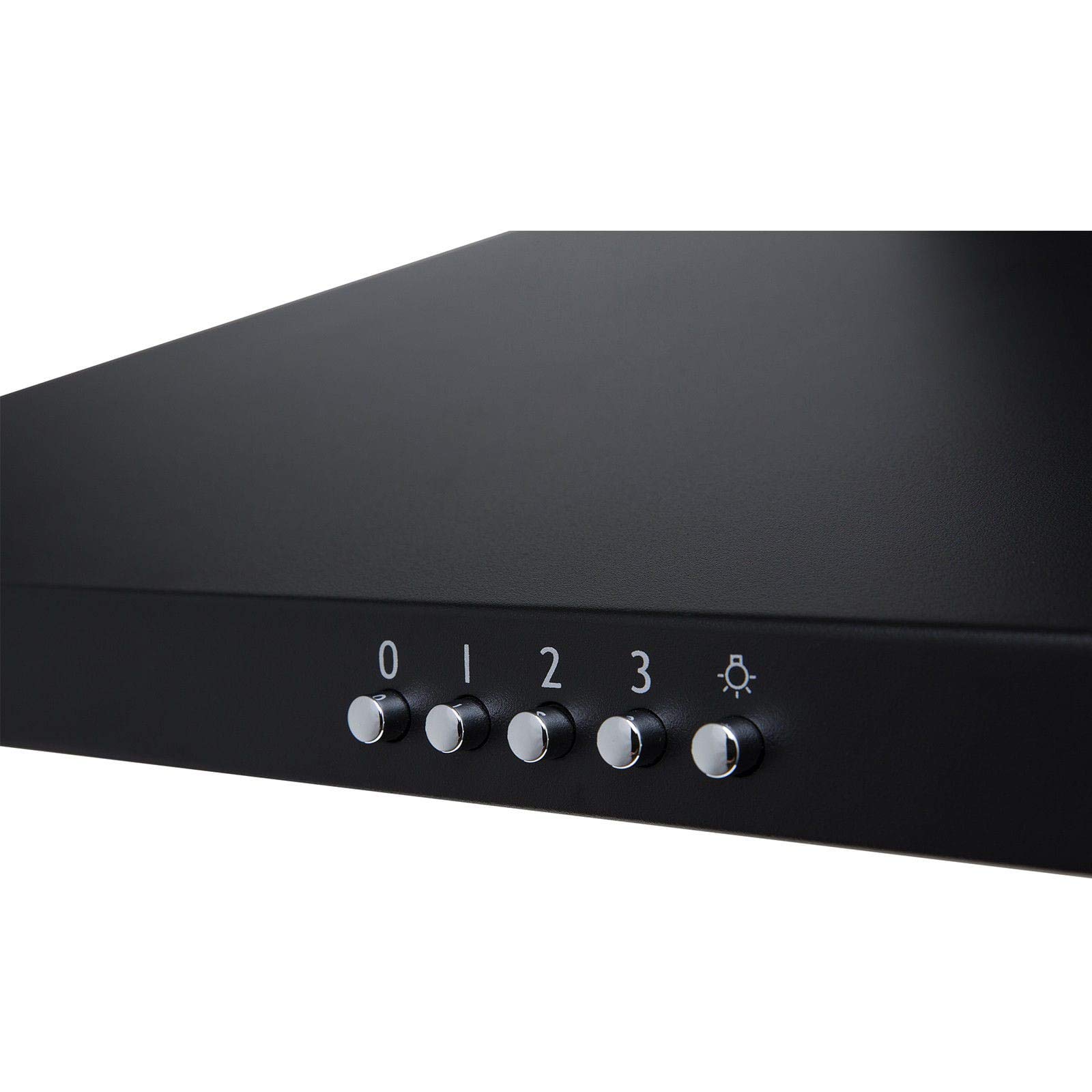

Push button controls
Dishwasher proof grease filters
2 x 28w halogen lamps
Operating Modes: Extraction & recirculation
Telescopic chimney sections
Warranty: 5 years
Optional accessories
Charcoal filters: SIA1 filters for recirculation available in our store
Ducting kit: D1 / D3 for external extraction
Fitting notes: Ensure sufficient ceiling height to accommodate clearance between hob & extractor
Required height over gas hob: 750mm
Required height over electric hob: 650mm
Technical specification
Noise level: 67 dBA
Extraction rate: 550 m3/hr
Rated electrical voltage: 230-240V
Power supply required: 3 amps

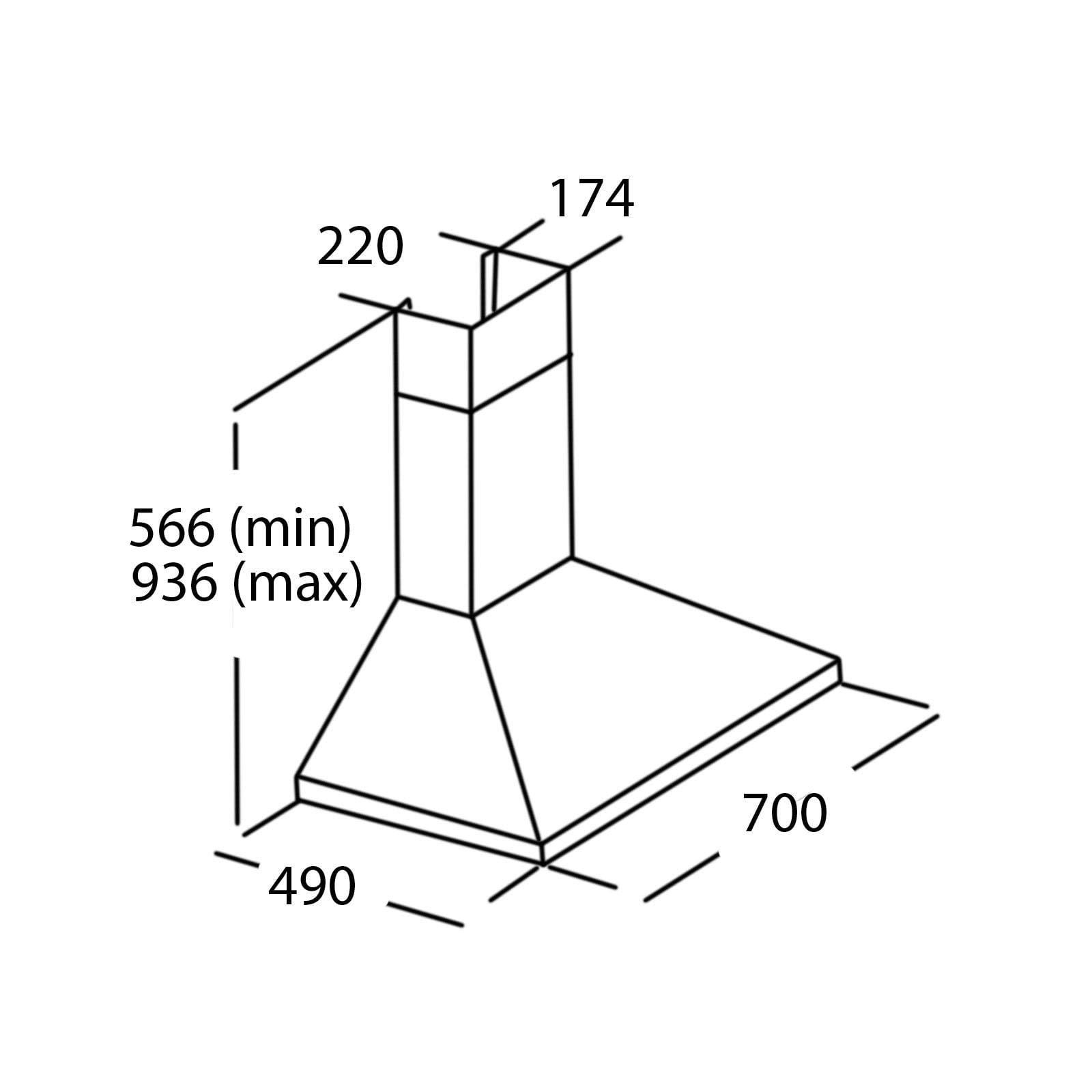

Additional information
Air outlet diameter: 125mm
Height without chimney sections: 185mm
Height of chimney sections: 400mm+400mm
Appliance height with chimney: 686mm-936mm
Mains lead length: 1m
Ducted or recirculating installation
3 speeds
Dishwasher proof grease filters
Telescopic chimney sections
5 Year Parts and 2 Year Labour Warranty
