Description
Features:
Support one-door
Can be used as a stand alone keypad
Dual units can be interconnected and interlocked
1000 users,supports Card,PIN, Card + PIN
Doesn’t need to connect on the computer,can works alone

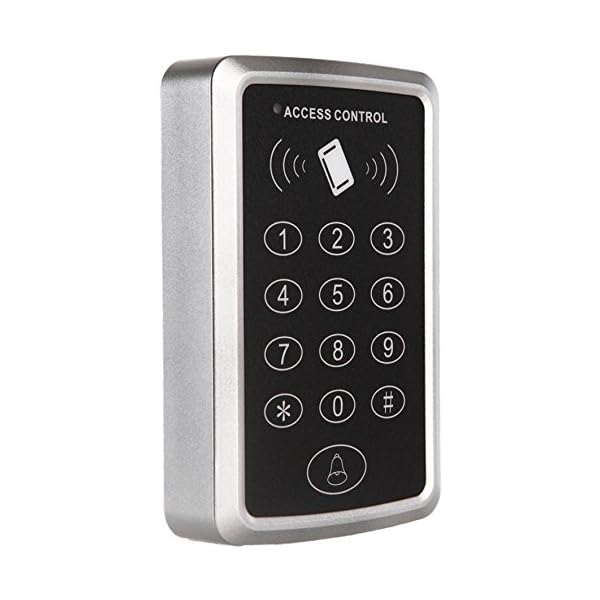

Access Control Keypad:
Card Type: EM or EM compatible card
Frequency: 125Khz
Read Speed: <0.2s
Reading range: 2-10mm
Intput Voltage: DC 12V
Operating current: <100mA
Power Supply:
Input Voltage: AC 110-240V (Worldwide voltage)
Input Frequency: 50-60Hz
Output Voltage: DC 12V/3A
Adjustable Locking Delay: 0~15 sec
Dimensions: 4.72 x 3.74 x 1.50 inchs
Electric Strike Lock:
Voltage: DC12V
Current: 450mA
Holding: 500kg
Signal Output: Not
Mode: Fail secure – locked when power is removed
Dimension: 150Lx39.5Wx34H(mm) / 5.91Lx1.56Wx1.33H(inch)
Keyfobs:
Operation Frequency: 125KHz
Reading distance: 3-10cm
Each keyfob has an uniqe ID number
Package:
1 x One-door access control
1 x Electric strike lock
1 x Power supply controller
1 x Exit button
1 x Remote
5 x RFID keyfobs
5 x ID cards (Thickness: 0.8mm)
1 x User manual
Support one-door
Can be used as a stand alone keypad.Doesn’t need to connect on the computer,can works alone
Support 1000 users, Card, PIN, Card + PIN
Sensitively and response quickly
Build in RFID reader, contactless RFID transponder technology
